The Nokia N85 and OLED screens: Not perhaps the Holy Grail

Published by Steve Litchfield at 11:13 UTC, October 1st 2008

Steve Litchfield has been playing with the Nokia N85 (prototype) and presents some more thoughts on the new screen technology used.

The N85 is the very first S60 phone to feature an OLED screen. That is, one where the dots light themselves rather than have to be lit by a power-hungry backlight.

Here's what Rafe put together a couple of weeks ago:

OLED, also known as LEP (light emitting polymer), is a screen made up of small dots of organic polymers that, when charged with electricity, emit light. The advantage of OLED displays are that they are generally brighter, have a better colour gamut (numbers of colours that can be accurately displayed at same time), have better contrast ratio, have a better response time, have better viewing angles and use less power. In contrast to traditional TFT LCD displays they do not require a back light.

AM OLED is a technology that combines the active matrix back plane, from a traditional TFT screen, with an OLED display. AM OLED displays, because of their active matrix nature, are quicker to switch pixels and thus give better performance for fast moving, on-screen changes such as animation and video.

What this means is that the N85's screen, compared to earlier Nseries devices, will have:

• • Reduced power consumption. In normal uses cases AM OLED requires 30-40% less power than a LCD screen. The power used is related to what is shown on the screen - the darker the screen the less power is used, conversely a predominantly white screen will use more power.

  • A better contrast ratio (ratio of the luminance of the brightest color, white, to that of the darkest color, black). Roughly 1:1300 compared to 1:500. Black is truly black on an AM OLED screen as there is no back-light and therefore no 'light-leakage'.

  • A better viewing angle - around 180°.

  • A greater number of different colours on the screen at one time.

  • A brighter screen for the same amount of power.

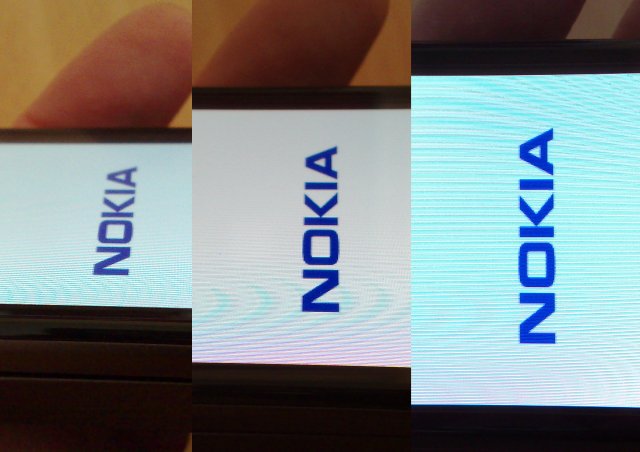

It's true, the OLED screen in the N85 really is very, very attractive. Put it side by side with any other phone (including the N95 8GB, N96 and iPhone) and it blows them away in most light conditions, with wall to wall viewing angle (seen below), white whites and black blacks.

And its demonstrably significantly less power hungry, as evidenced by the fact that I haven't charged the prototype N85 in two days and yet it's still showing full bars on the battery gauge. Impressive.

But is it the Holy Grail of screen technology? Surely there's got to be a catch? After all, isn't there always?

There are basically two sorts of screen technology in use today in PDAs and smartphones. The cheaper ones (and those with touch layers) tend to be transmissive TFTs, while Nokia has used (for some, though not all of its devices) transflective TFTs. Whereas transmissive TFT screens looks great indoors but washout horribly outdoors and especially in sunlight (where the backlight simply can't compete with the sun), transflective displays look pretty good indoors and still eminently readable in sunlight too, thanks to the extra reflective layer using the bright natural light to show the LCD contents.

Examples of the former in the Symbian world are the Nokia N76 and N93i and Samsung  i550, G810 and i8510, while examples of the latter technology are thankfully far more numerous, including the 6630, 6680, N70, N90, N73, N95, N82, E61, E71, N93, etc.

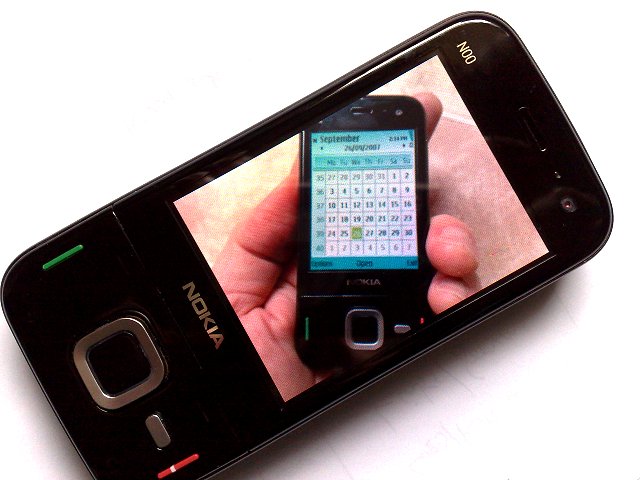

And now we have the N85 with an OLED screen - how does it fare in the sunlight test? As you might expect, given the physics involved (pixels glowing for themselves), it doesn't do well. Here's the N85 snapped in the Autumn sun in the UK. Not good.

And yes, this is a potential problem. Despite the other advantages of OLED in terms of power and contrast, surely most people would rather have a screen that they can see when taking photos (for example) out in the sun?

Thankfully, the problem's not as severe as in, for example, the Samsung i8510 (INNOV8), whose screen has poor contrast in all outdoor conditions. The N85's display works reasonably well in indirect sunlight, i.e. without the sun competing directly. So you CAN use it outdoors, even though the screen contrast isn't as good as on, e.g. the N95 or E61.

As ever, we come up against yet another compromise founded in the laws of physics. Star Trek was right, again. But, on balance, I think Nokia's made the right call with OLED. I and others will probably put up with not being able to take photos with the sun right behind us in order to take advantage of the potentially doubled battery life and the glorious colours indoors.

Steve Litchfield, All About Symbian, 1 Oct 2008

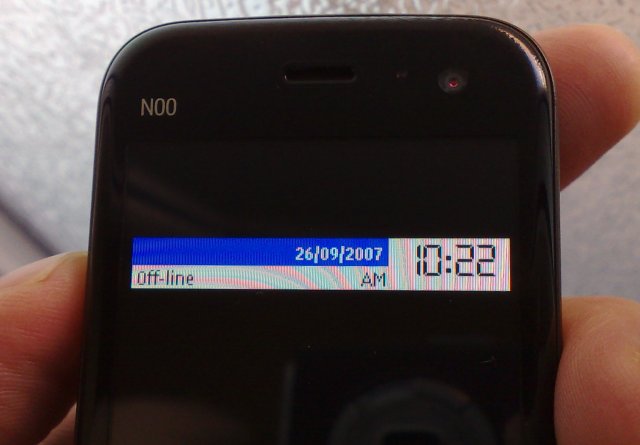

PS. One interesting side effect of the switch to OLED is that the power saver/screen saver strip (time/date/profile) is now permanently illuminated. It looks odd at first, but soon becomes very useful as you realise how much more visible it is as a clock than the old backlight-dimmed version!

Share This (Digg, del.icio.us, Facebook, etc.)

Categories: Hardware
Platforms: General, S60 3rd Edition

In answer to scarcow, here's the N95 in more or less identical full sun. If anything, the sun's brighter today than when I took the N85 one...

So yes, there IS a difference here between the different technologies...

Quote:

Originally Posted by slitchfield And its demonstrably significantly less power hungry, as evidenced by the fact that I haven't charged the prototype N85 in two days and yet it's still showing full bars on the battery gauge. Impressive.

2 days with the kind of heavy usage you usually put the phone through??? That is really, really impressive...

I suddenly remember my 6610 days where I had to charge the phone once in 3 days. Have not experienced that since I switched to Symbian 5 years ago.
