Mugen Power 2000mAh battery for Nokia E75

Published by Steve Litchfield at 13:30 UTC, August 14th 2009 under Accessories in S60 3rd Edition|| 18 Comments / Post New Comment

Steve looks at the ultimate E75 battery extender...

Version Reviewed:
Score: 77

The Mugen 2000mAh battery on the E75

One of the downsides of the Nokia E75 design is that the presence of the qwerty keyboard has meant that there's less 'thickness' available for its battery. As a result, Nokia have had to use the 1000mAh BL-4U, with a third less capacity than the 1500mAh BP-4L that normally powers most Eseries phones. Now, it's true that optimisations in S60 3rd Edition Feature Pack 2 mean that the E75 doesn't pull down as much power as, say, an E71 or E90, and that 1000mAh is easily enough to see you through a day of moderately heavy use (especially as you won't be watching much video on the smallish 2.4" screen), but you will have to charge it each night if you don't want to run out halfway through the next day.

The Mugen 2000mAh battery on the E75

If you spend a lot of time on the road or like to go hiking (or similar), away from charging power, then a new option to you is to fit the after-market Mugen 2000mAh battery, purpose built for the E75. As the capacity suggests, this should keep you going for twice as long, and over a week's testing I can verify that this is about right. I went from Wednesday to Saturday on a single charge, with my usual smartphone usage (texting/PIM/music/podcasts/camera/GPS), though I was careful not to waste power outright and didn't keep a data connection active the whole time, for example. I also use 'Offline' mode overnight.

So, with frugal use, I can see this battery giving the E75 a week of operation, which is quite impressive.

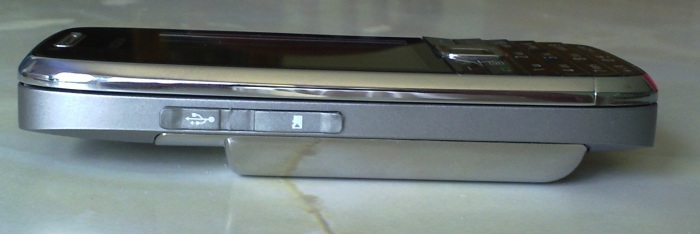

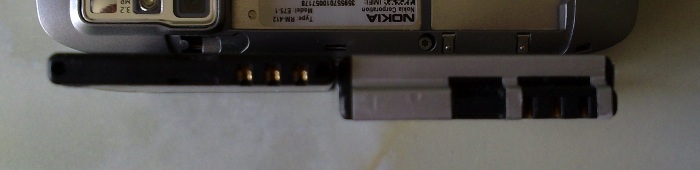

The downside, as you can see from the photos, is that the 2000mAh battery is larger. Over twice as thick as the original Nokia battery, which is curious:

The Mugen 2000mAh battery on the E75

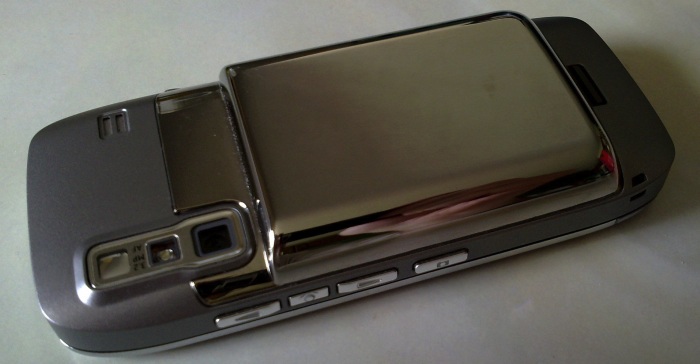

Still, Mugen also supply a replacement metal back cover, which hooks into the standard cover latching points. A thicker phone means that you may need a new E75 case - or car cradle. And it means a heavier phone, which may be an issue for you (and the line of your jacket).

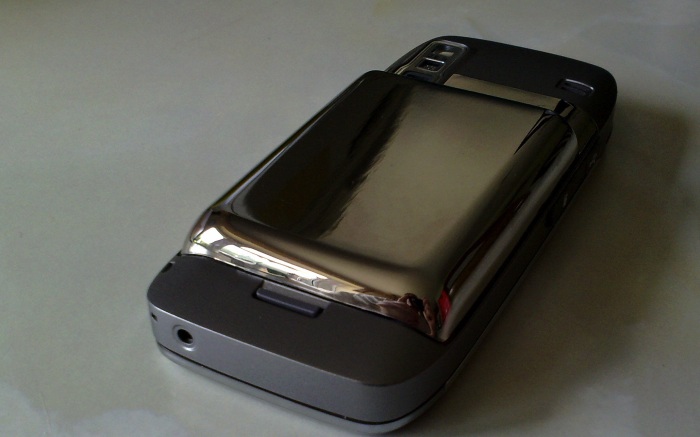

The other downside is the cosmetic angle. The replacement cover produces a huge 'bulge', plus the primitive finish isn't as eye-catching as the original textured cover. Now, it's important to emphasise that this is mainly a fashion thing: in the hand, the bulge actually helps use, since the fingers of your hand nestle around it - it makes gripping the E75 easier. But put the phone down or wave it around and the device will look a little 'odd'.

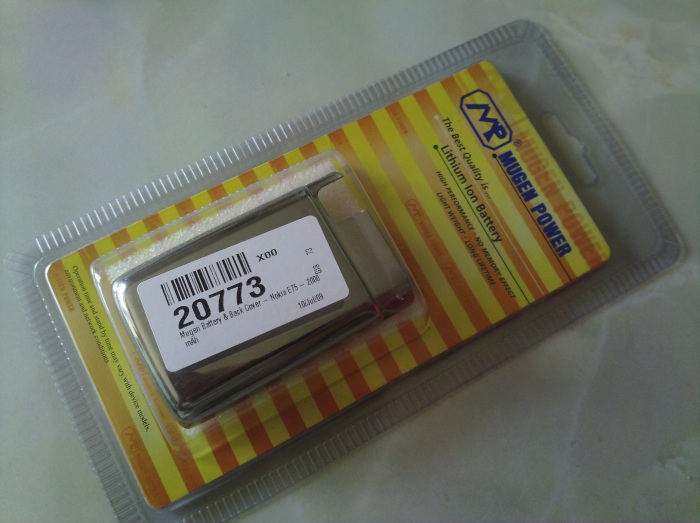

Straight out of the packet, the Mugen battery was fully charged, which is a nice touch. I did have an issue inserting it into the E75 at first, because the battery contacts were so 'new' and stiff. I loosened them slightly with a small screwdriver and then the battery slotted in fine. One other small hardware note was that the replacement back cover didn't fit perfectly - the latches were slightly oversized, meaning that the cover wasn't retained quite as tightly as it should have been. Not a huge problem, but, well, it's very obvious that the E75 has been accessorised!

The Mugen 2000mAh battery on the E75

Only you'll know whether the Mugen 2000mAh battery is right for you - it's a specialist item to be sure, but it does function as advertised and, on a camping trip (for example) might be an investment that saves the day.

Steve Litchfield, All About Symbian, 14 Aug 2009

The Mugen 2000mAh battery on the E75

The Mugen 2000mAh battery on the E75


Review Discussion

18 Comments / Post New Comment

buster
Quote:
The other downside is the cosmetic angle. The replacement cover produces a huge 'bulge', plus the primitive finish isn't as eye-catching as the original textured cover. Now, it's important to emphasise that this is mainly a fashion thing: in the hand, the bugle actually helps use, since the fingers of your hand nestle around it - it makes gripping the E75 easier. But put the phone down or wave it around and the device will look a little 'odd'.
Wow! So it makes your phone last longer between charges AND it's a musical instrument...:D
slitchfield
Ho yes, did I forget to mention its melodic qualities?

[Thanks, will fix the typo]
Unregistered
Whether the huge bulge affects CAMERA's view or not ???
slitchfield
No, the bulge actually helps the camera, by keeping surface dust etc away from the camera glass. The protrusion doesn't get in the way of the camera's field of view.
jApi NL
Just been reading a review about Proporta Turbocharger . The down is of course you have to carry an extra packet , also on the Website I couldn't find the 3400mAh , but only the 1200 one : http://phonereport.info/review-propo...ocharger-3400/

:) Regards jApi NL
UKJeeper
Quote:
Originally Posted by slitchfield View Post
As a result, Nokia have had to use the 1000mAh BL-4U, with 50% less capacity than the 1500mAh BP-4L that normally powers most Eseries phones.
It's been a long time since i went to school, but isn't 50% of 1500, 750?
Unregistered
Just checked the Mugen website on:

http://www.mugenpowerbatteries.com/?...FU0B4wodL1dZjg

It appears they have a whole range of extended capacity batteries for numerous Nokia phones, AND the covers to go with them e.g. N95 & N95 8GB, E6, E71, E90.

The E90 is 1800 mAh as opposed to the standard 1500 mAh but even so, it's ot to be worth looking at.

Thanks for 'showing the way' Steve, & a another great review!
Larry70465
Scrub my last re the E90 & 1800 mAh - Having taken the time to check properly it appears that the 1800 mAh battery is a 'standard fit' and doesn't require a new cover.

The really interesting news is that the extended battery is a whopping 3600 mAh but does require a Mugen custom battery cover. The bottom line? $66 for the battery and cover, with free worldwide shipping advertised...

Veeeerry tempting... Credit card is now all a quiver....
slitchfield
@UKJeeper: Pedant 8-) You know what I was getting at: 50% more again could have been had if the E75 had had the BP-4L (1500mAh). From the point of view of the existing battery, the difference is 50%. Ahem. Well, I knew what I was trying to say, anyway!
Unregistered
Mugen have been producing high capacity (some with custom covers) for a very long time. They are very good compared to those cheap batteries advertised on eBay which often lie about their actual capacity and do not always pass safety regulations.
rottie
I'm sorry, but what's the problem with buying second STANDARD battery and change it when the first one is empty?
Unregistered
All they did was take two BL-4U batteries and wire them together to create one monster battery. What they shouldv'e done was create an entirely new battery 1.5 times as thick as the BL-4U, at 1500mAh and use that instead. It would still look silly with a bulge on the back but at least it wouldn't look as silly. So when do they create one for the N97?
davidmaxwaterma
> @UKJeeper: Pedant 8-) You know what I was getting at: 50% more again could have been had if the E75 had had the BP-4L (1500mAh). From the point of view of the existing battery, the difference is 50%. Ahem. Well, I knew what I was trying to say, anyway!

Pedant? I don't think so. Wrong is wrong.

Wouldn't it just be easier just to change it to 'a third', '33.3%' or something?
slitchfield
@david and others. OK, ok, I give in, yes, it's easier to just change the text than justify a woolly fraction 8-)
ashu
I went to their site. They have nothing for N79 but then my my phone is will just look damn damn dirty ;) Am fine with carrying my charger :)
Unregistered
God that thing is ugly!
TurboPhone
I ordered mine from Mugen Power website here: http://www.mugen-power-batteries.com...nokia-e75.html. They do offer free shipping and I got it quick.
Unregistered
Hi Steve

Thanks for the review. Like you said, this will not help any "cool" factor but it will be practical when you're not near a charger.
